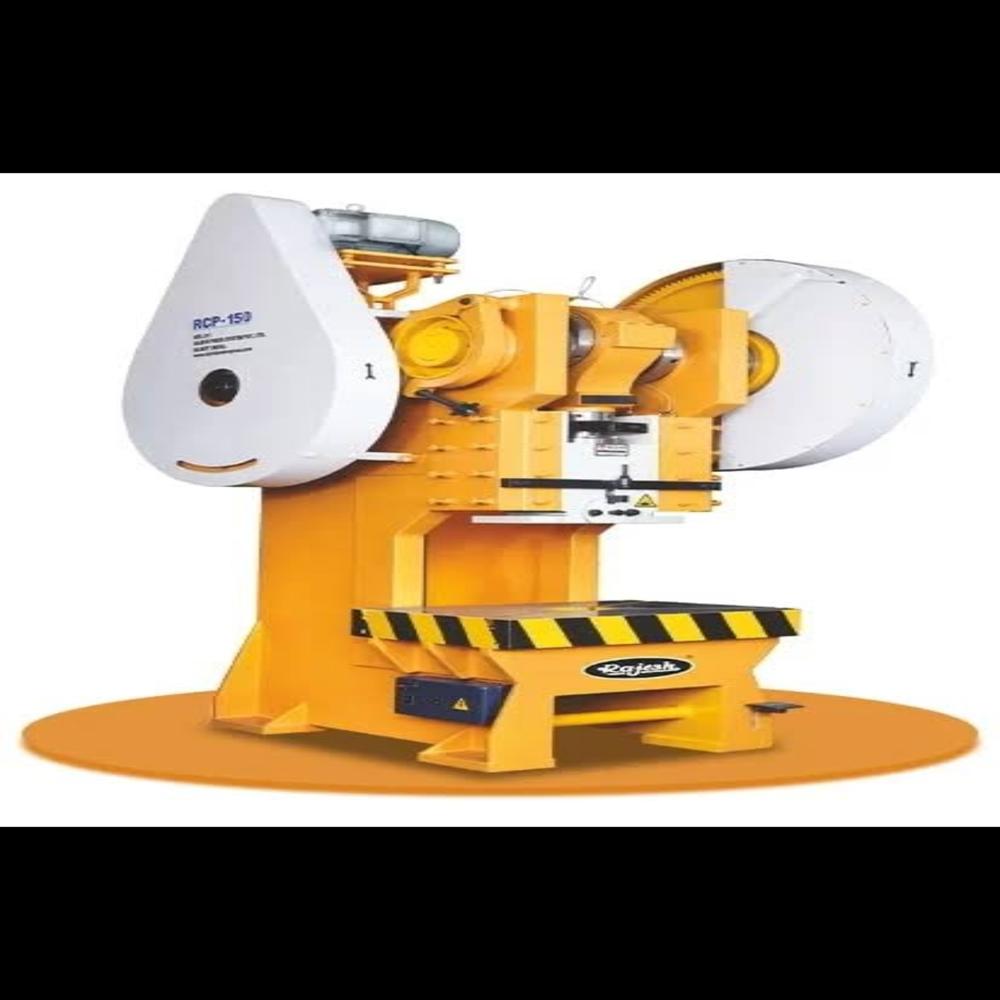

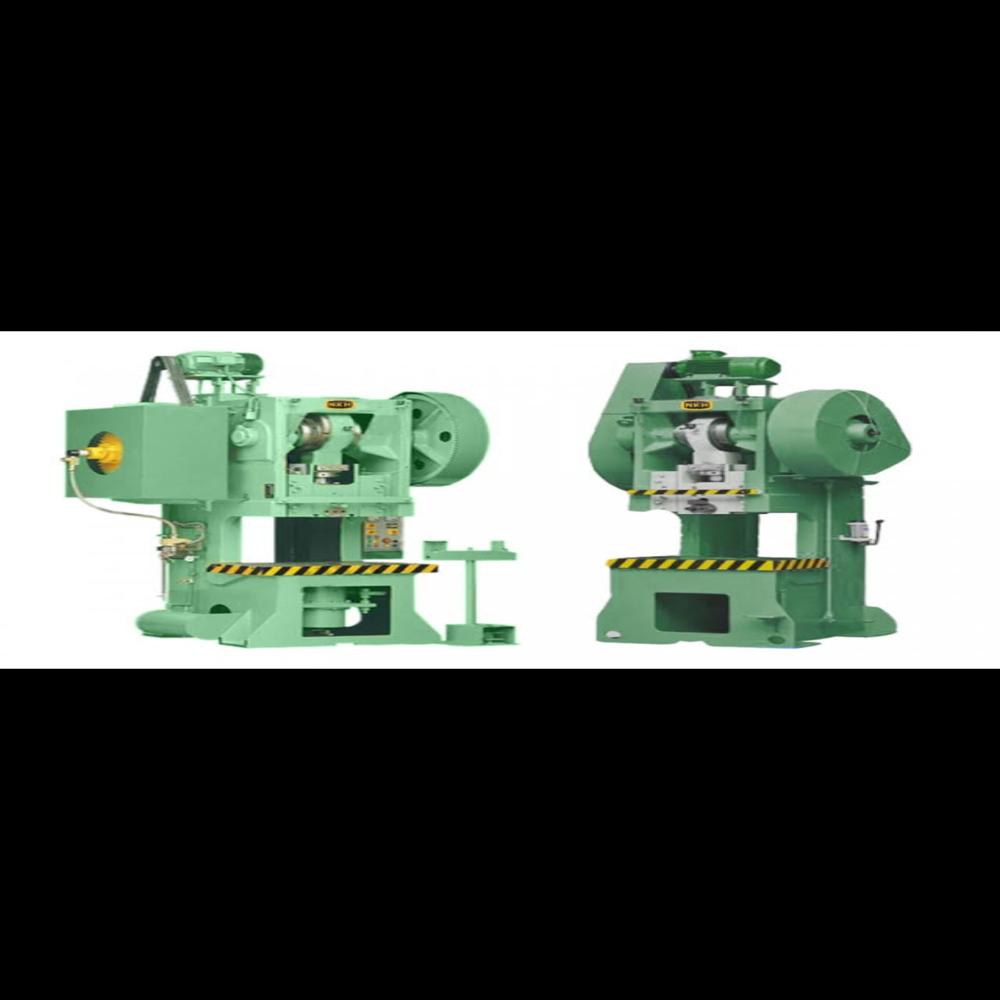

C Frame Power Press

C Frame Power Press
C Frame Power Press
Send Inquiry
Product Code : BMT 07
Brand Name : BHARAT MACHINE TOOLS
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Unit/Units
Product Description

Our enterprise has gained immense recognition in the industry by offering an excellent quality assortment of C Frame Power Press. Offered machine is used for bending or give the shape of metal by applying work force. This power press is manufactured by making use of fine grade components under the stern supervision of professionals at our well equipped manufacturing unit. We provide this C Frame Power Press in various specifications as per the diverse requirement of our clients.

Features:

  • Sturdy construction
  • User friendly
  • High operational fluency
  • Impeccable performance

Technical Specifications:
Model
G2-110
G2-160
G2-200 G2-250
Type
S
V
H
S
V
H
S
V
H
S
V
H
Capacity
Tons
110
160
200
280
Rated Tonnage Point (Above B.D.C.) mm
5
3
6
3
6
3
7
3.5
Stroke Length
mm
180
110
200
130
250
150
280
170
Strokes Per Minute
S.P.M.
50
35-65
50-100
45
30-55
40-85
35
25-45
35-70
30
20-35
30-60
Die Height (S.D.A.U.)
mm
400
450
500
550
Maximum Upper Die Weight
kg
800
1270
1470
1560
Slide Adjustment
mm
100
100
120
120
Boister Area (L.R. x F.B.)
mm
1800 x 650
2000 x 760
2400 x 840
2700 x 900
Boister Thickness
mm
130
165
150
185
160
210
160
215
Slide Plate Area (L.R. x F.B.)
mm
1400 x 500
1600 x 550
1850 x 650
2100 x 700
Slide Plate Thickness
mm
70
70
95
95
Shank Hole
mm
50 x 3 x Pitch 320
50 x 3 x Pitch 60 x 3 x Pitch 375
60 x 3 x Pitch 450
Main Motor
HPxP
10 x 6
VS15 x 4
15 x 6
VS20 x 4
20 x 6
VS25 x 4
25 x 6
VS30 x 4
Slide Adjusting Motor
HPxP
1 x 4
1 x 4
2 x 4
2 x 4
Air Supply Requirement
Kg/cm2
5
5
5
5
Precision
JIS (CNS) First Class
Die Cushion
2 - Pad - 2 - Cylinder
Capacity
Tons
3.6 x 2
6.3 x 2
10 x 2
14 x 2
Air Pressure
Kg/Cm2
6.5
7.2
6.75
9
Stroke
mm
70
70
80
100
Pad Area (L.R. x F.B.)
mm
350 x 235 x 2 pcs
410 x 260 x 2 pcs 540 x 350 x 2 pcs 640 x 470 x 2 pcs
Trade Information
  • Payment Terms
  • Cheque, Others
  • Supply Ability
  • 4 Per Month
  • Delivery Time
  • 45 Days
  • Packaging Details
  • loss packing
  • Main Domestic Market
  • All India
  • Certifications
  • ISO:9001 , 2008
