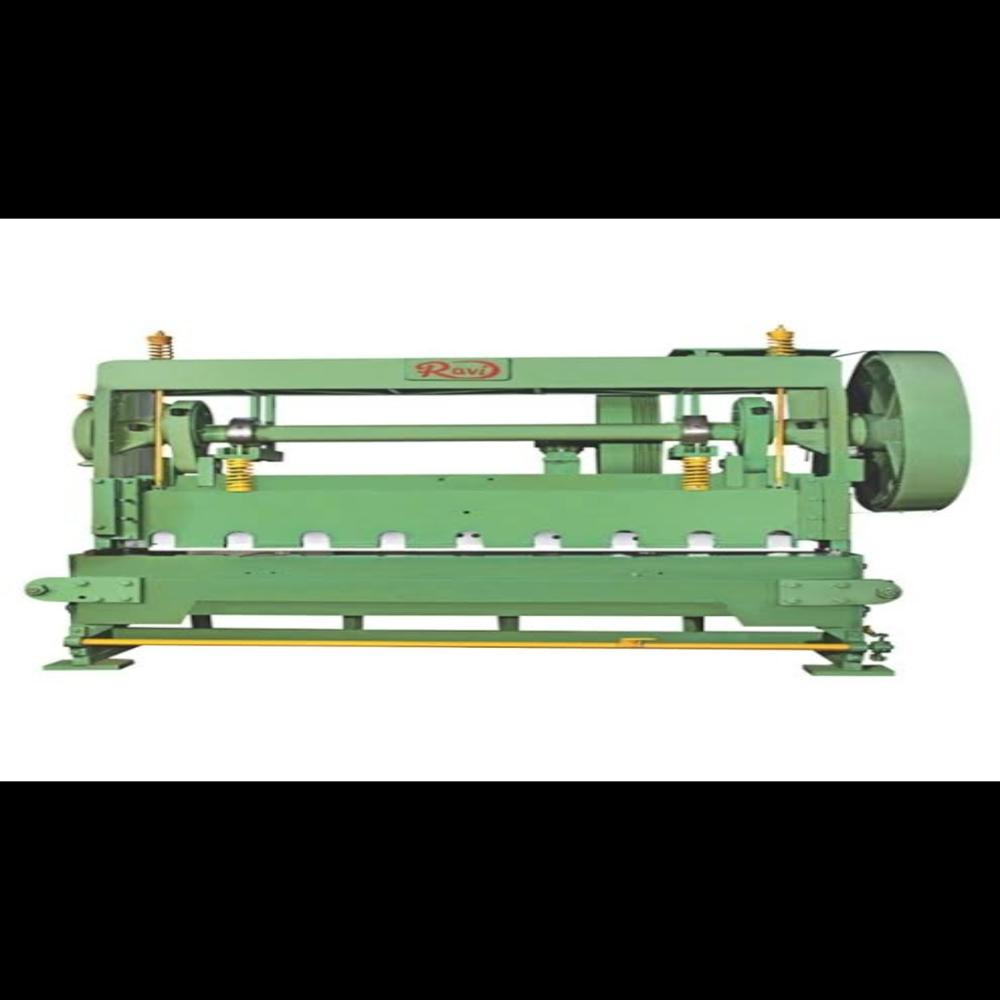

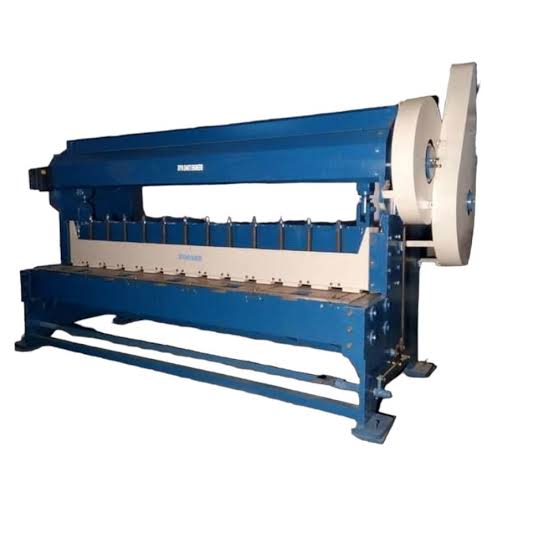

Over Crank Shearing Machine
450000 INR/Piece
Product Details:
- Type Mechanical Shearing Machine
- Material Mild Steel
- Automatic Grade Automatic
- Warranty 1 Year
- Click to View more
X
Over Crank Shearing Machine Price And Quantity
- 1 Piece
- 450000 INR/Piece
Over Crank Shearing Machine Product Specifications
- Mechanical Shearing Machine
- 1 Year
- Mild Steel
- Automatic
Over Crank Shearing Machine Trade Information
- Cheque Cash Advance (CA)
- 1 Piece Per Month
- 2 Months
- loss packing
- Australia Eastern Europe Middle East North America Western Europe Africa Central America South America Asia
- All India
- ISO:9001 , 2008
Product Description
Fostered with immense years of industry experience and market understanding, we are offering a wide gamut of Over Crank Pneumatic Shearing Machine. This machine find applications in various industries for bending workpiece by applying hydraulic, pneumatic and servo-electric force. With the help of latest techniques, this machine is precisely manufactured under the supervision of our seasoned professionals as per the market norms. To meet the clients variegated specifications, this Over Crank Pneumatic Shearing Machine can be availed from us pocket-friendly prices.
Features:
- Robust construction
- Accurate dimension
- High operational fluency
- Less maintenance
Specifications:
| Modal | Max. Cutting Thickness in M.S. of Grade St.42-S As per IS:226-1975 | Maximum Cutting Length | Distance Between Uprights | Depth of Throat | Shear Angle of Top Blade | Idle Strokes Per Minute Crank Shaft R.P.M | No. of holddown Plunger | Distance Under Hold Down Pads | Front Gauge Range (Std.) | Back Gauge Range (Std.) | Height of Bed From Floor | Main Motor | Approx. Weight |
| M.S. | mm | mm | mm | mm | degrees | per minute | mm | mm | mm | mm | kW | Tonnes | |
| 1250 | 1370 | 45 | 7 | 10 | 3.7 | 3.00 | |||||||
| 1600 | 1720 | 40 | 9 | 10 | 3.7 | 3.50 | |||||||
| MS - 3.15x | 3.15 | 2000 | 2120 | 150 | 1o | 35 | 10 | 15 | 630 | 630 | 800 | 3.7 | 4.00 |
| 2500 | 2620 | 30 | 11 | 15 | 3.7 | 5.00 | |||||||
| 3150 | 3270 | 30 | 15 | 15 | 5.5 | 6.00 | |||||||
| 1250 | 1370 | 45 | 7 | 10 | 3.7 | 3.50 | |||||||
| 1600 | 1720 | 40 | 9 | 10 | 5.5 | 4.00 | |||||||
| MS - 4x | 4 | 2000 | 2120 | 150 | 1o | 35 | 10 | 15 | 630 | 630 | 800 | 5.5 | 4.50 |
| 2500 | 2620 | 30 | 11 | 15 | 5.5 | 5.75 | |||||||
| 3150 | 3270 | 30 | 15 | 15 | 7.5 | 7.25 | |||||||
| 1250 | 1370 | 40 | 7 | 12 | 5.5 | 4.00 | |||||||
| 1600 | 1720 | 35 | 9 | 12 | 5.5 | 4.75 | |||||||
| MS - 6x | 6 | 2000 | 2120 | 150 | 1o10 | 35 | 10 | 20 | 630 | 630 | 800 | 5.5 | 5.25 |
| 2500 | 2620 | 30 | 11 | 20 | 7.5 | 6.50 | |||||||
| 3150 | 3270 | 30 | 15 | 20 | 11 | 7.50 | |||||||
| 1250 | 1370 | 35 | 7 | 20 | 5.5 | 4.75 | |||||||
| 1600 | 1720 | 35 | 9 | 20 | 7.5 | 5.50 | |||||||
| MS - 8x | 8 | 2000 | 2120 | 250 | 1o-20' | 30 | 10 | 25 | 630 | 630 | 800 | 7.5 | 6.25 |
| 2500 | 2620 | 30 | 11 | 25 | 11 | 7.75 | |||||||
| 3150 | 3270 | 25 | 15 | 25 | 11 | 9.00 | |||||||
| 1250 | 1400 | 35 | 7 | 20 | 7.5 | 6.50 | |||||||
| 1600 | 1750 | 30 | 9 | 20 | 7.5 | 8.00 | |||||||
| MS - 10x | 10 | 2000 | 2150 | 250 | 1o-20' | 30 | 10 | 25 | 630 | 630 | 800 | 11 | 9.00 |
| 2500 | 2650 | 25 | 11 | 25 | 11 | 10.00 | |||||||
| 3150 | 3300 | 25 | 15 | 25 | 15 | 11.50 | |||||||
| 1250 | 1400 | 35 | 7 | 20 | 9.3 | 7.00 | |||||||
| 1600 | 1750 | 30 | 9 | 20 | 11 | 8.50 | |||||||
| MS - 12x | 12 | 2000 | 2150 | 250 | 1o-50' | 30 | 10 | 25 | 630 | 630 | 800 | 11 | 10.00 |
| 2500 | 2650 | 25 | 11 | 25 | 15 | 12.00 | |||||||
| 3150 | 3300 | 22 | 15 | 25 | 18.5 | 14.75 | |||||||
| 1250 | 1400 | 30 | 7 | 32 | 11 | 8.00 | |||||||
| 1600 | 1750 | 30 | 9 | 32 | 11 | 10.00 | |||||||
| MS - 16x | 16 | 2000 | 2150 | 250 | 2o-20' | 25 | 10 | 32 | 630 | 630 | 800 | 15 | 12.00 |
| 2500 | 2650 | 25 | 11 | 32 | 18.5 | 15.00 | |||||||
| 3150 | 3300 | 22 | 15 | 32 | 22 | 18.00 | |||||||
| 1250 | 1400 | 27 | 7 | 40 | 18.5 | 9.50 | |||||||
| 1600 | 1750 | 25 | 9 | 40 | 18.5 | 12.50 | |||||||
| MS - 20x | 20 | 2000 | 2150 | 250 | 2o-40' | 25 | 10 | 40 | 630 | 630 | 800 | 22 | 15.50 |
| 2500 | 2650 | 22 | 11 | 40 | 22 | 18.75 | |||||||
| 3150 | 3300 | 20 | 15 | 40 | 30 | 22.75 |
Salient Features :
- OCS Series Shearing Machines are Single piece extra heavy duty steel weldment with over crank shaft gear train drive.
- Compression spring loaded sheet gripper eliminates the problem of leakage as in case of hydraulic clamps.
- Alloy steel gear ensuring long life of machine
- Centralize lubrication for all wearing parts.
- Available with pneumatic clutch brake unit and with mechanical clutch.
- Over Crank Pneumatic Shearing Machine.
Technical Specification :
| Model | Max. Cutting Thickness in M.S. Gr. St. 42-s | Cutting Length | Shear Angle of Top Blade | Idle Strokes Per Minute R.P.M. | Front Gauge Range (Std.) | Height of Bed From Floor | Main Motor |
| M.S. | Mm | Mm | Degrees | Per Minute | mm | Mm | kW |
| MS- 4x | 4 | 1600-3150 | 1o | 30-40 | 630 | 800 | 5.5-7.5 |
| MS- 6x | 6 | 1600-3150 | 1o 10' | 30-35 | 630 | 800 | 5.5-11 |
| MS- 8x | 8 | 1600-3150 | 1o 20' | 25-35 | 630 | 800 | 7.5-11 |
| MS-10x | 10 | 1600-3150 | 1o 20' | 25-35 | 630 | 800 | 7.5-15 |
| MS-12x | 12 | 1600-3150 | 1o 50' | 22-35 | 630 | 800 | 15-18.5 |
| MS-16x | 16 | 1250-2500 | 2o 20' | 25-30 | 630 | 800 | 11-18.5 |
| MS-20x | 20 | 1250-2500 | 2o 40' | 22-27 | 630 | 800 | 18.5-22 |
