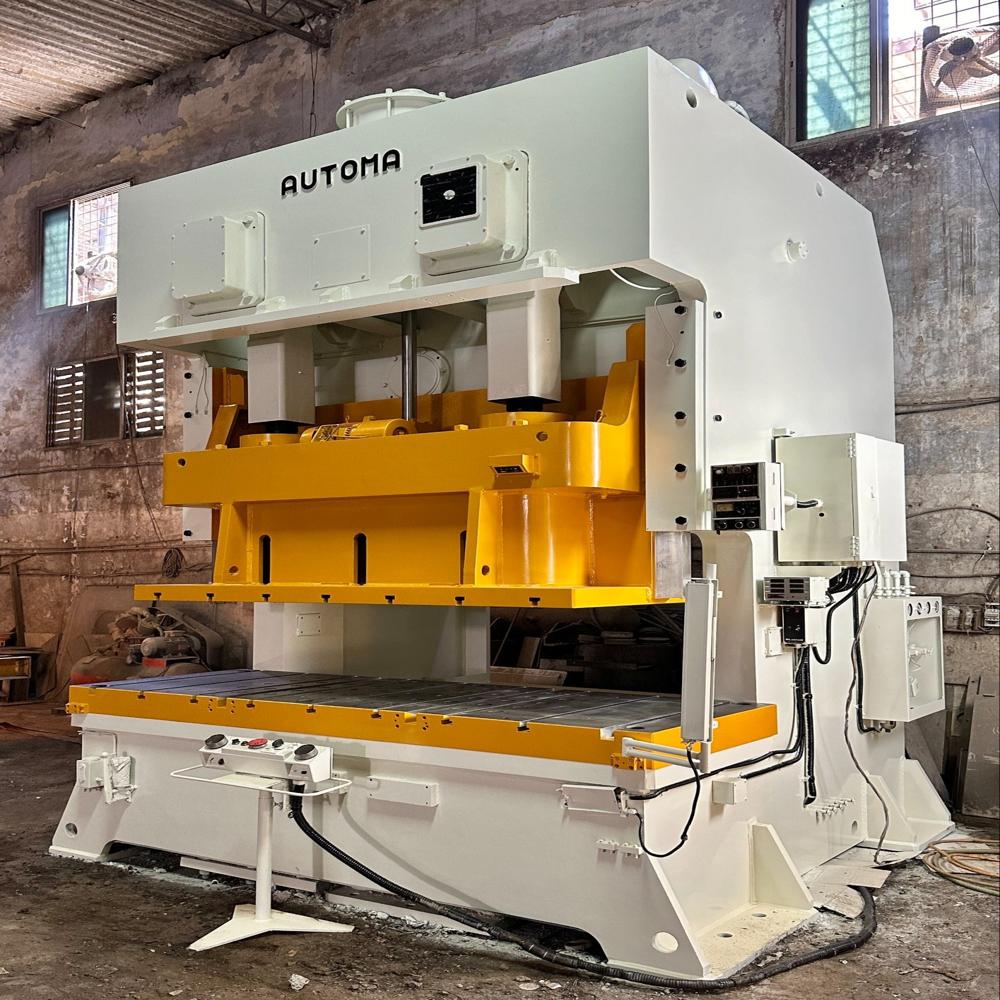

Double Crank

6250000.0 INR/Piece

Get a Price/Quote

Product Details:

Product Type Other
Power Source Hydraulic
Operating Type Automatic
Usage & Applications Industrial
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Double Crank Price And Quantity

Minimum Order Quantity 1 Ton
Price 6250000.0 INR/Piece

Double Crank Product Specifications

Operating Type Automatic
Product Type Other
Usage & Applications Industrial
Power Source Hydraulic

Double Crank Trade Information

Payment Terms Cash in Advance (CID), Cheque
Supply Ability 1 Ton Per Month
Delivery Time 2
Packaging Details loss packing
Main Export Market(s) Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
Main Domestic Market All India
Certifications ISO: 9001 , 2015

Product Description

We have earned our name as a renowned manufacturer and supplier of Double Crank. It has open back crank design, used for universal stamping applications. To manufacture this machine our expert workforce uses quality grade mild steel and cast iron. This machine is used for drawing, forming, blanking, bending and trimming applications. The mechanical framework of this machine is welded with steel plates as an integrated structure with perfect rigidity. We offer our Double Crank at market leading prices to clients.

Features:

Robust construction
High operational fluency
Longer working life

Technical Specification :

Model BDX	110	160	200	250
Force (kN)	1100	1600	2000	2500
Rated distance Before B.D.C. (mm)	5	6	6	7
Stroke Length (mm)	180	200	250	280
Number Stroke (spm)	45	40	A35	30
Shut Height Over Bed (mm)	450	500	560	560
Slide Adjustment (mm)	100	100	125	125
Slide Area (mm)	1400x500	1660x550	1850x650	2100x700
Bolster Area (mm)	1800x650	2000x760	2400x840	2700x900
Main Motor (kW X rpm)	9.3x1440	15x1440	15x1440	18x1440
Air Pressure Required (Kg/cm²)	5.5	5.5	5.5	5.5
